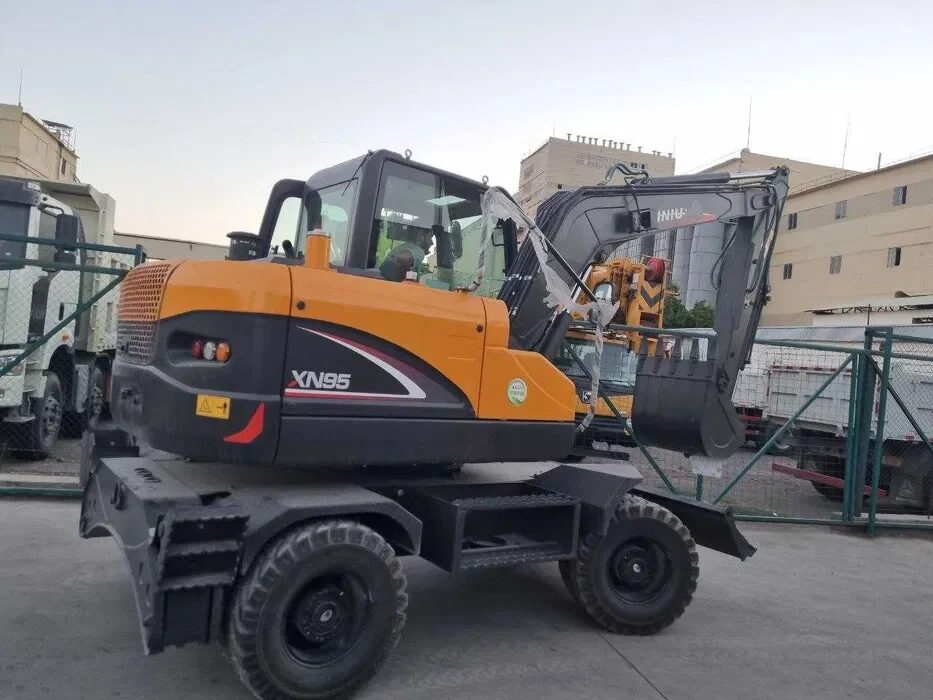

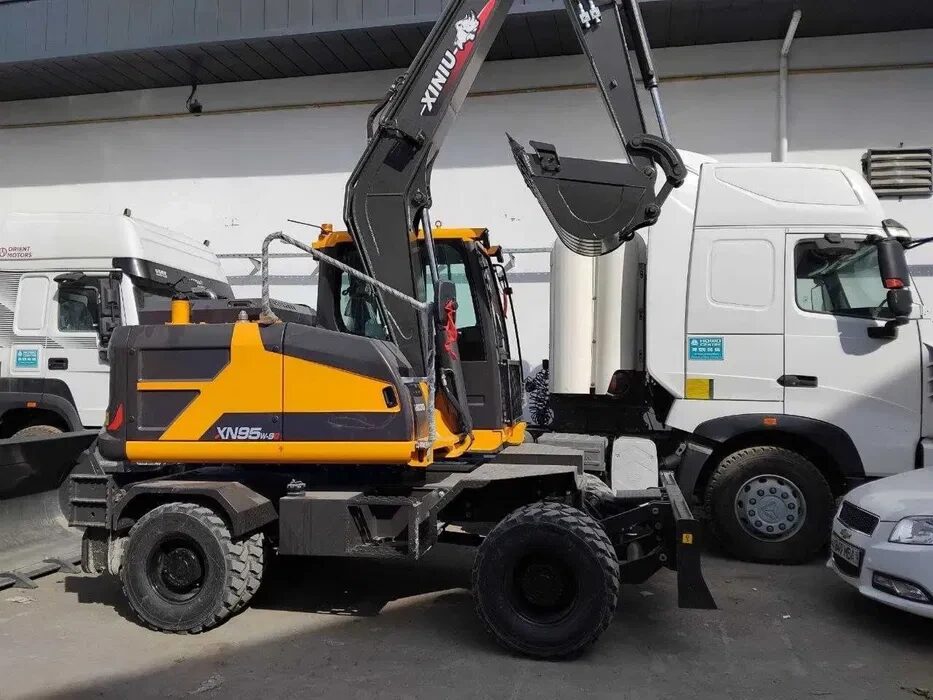

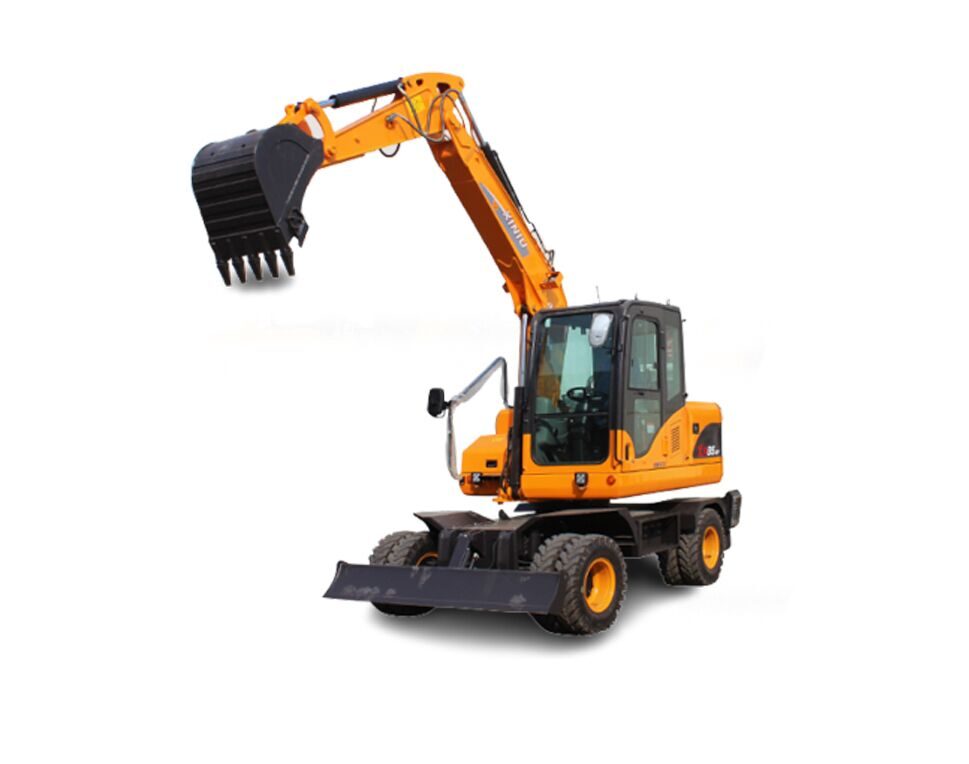

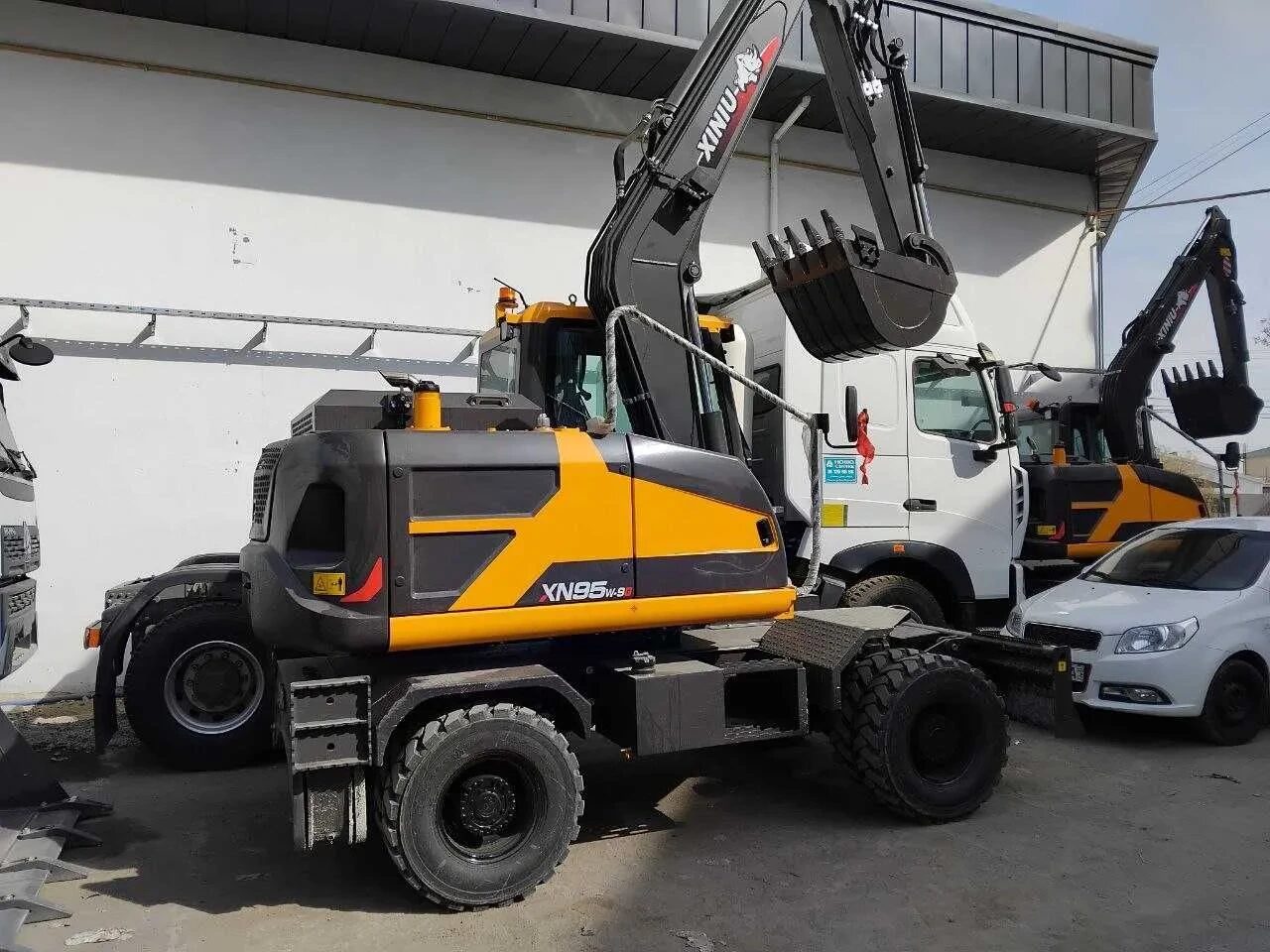

Excavator XN95W-9G

The XN95W-9G wheeled excavator from the company is a modern model, ideally suited for a wide range of construction, municipal, and earthmoving tasks. Thanks to its high mobility, compact dimensions, and fuel-efficient engine, it performs excellently both in confined spaces and on open sites.

Key Features:

Boom length: 3.7 m + 2.3 m, providing excellent digging depth and height
Maximum digging radius: 6,787 mm
Maximum digging depth: 3,635 mm
Maximum dumping height: 5,230 mm

Performance and Reliability:

Equipped with a reliable Xinchai 4D35ZG31 diesel engine, delivering 48 kW at 2,200 rpm, ensuring stable operation even under high loads
Average fuel consumption: 3.5 L/h, making it cost-effective for daily use

Comfort and Mobility:

Operating weight: 8,200 kg
Maximum travel speed: 28 km/h
Bucket capacity: 0.3 m³
Tank capacities: fuel — 150 L, hydraulic — 175 L

Compact dimensions and a small turning radius (2,334 mm) make the XN95W-9G an indispensable assistant on construction sites with limited space.

Technical Specifications

Overall Length

6 485 mm

Overall Height

2 932 mm

Axles (Bridges)

10 t

Boom Length

3,7 m + 2,3 m

Operating Weight

8 200 kg

Bucket Capacity
