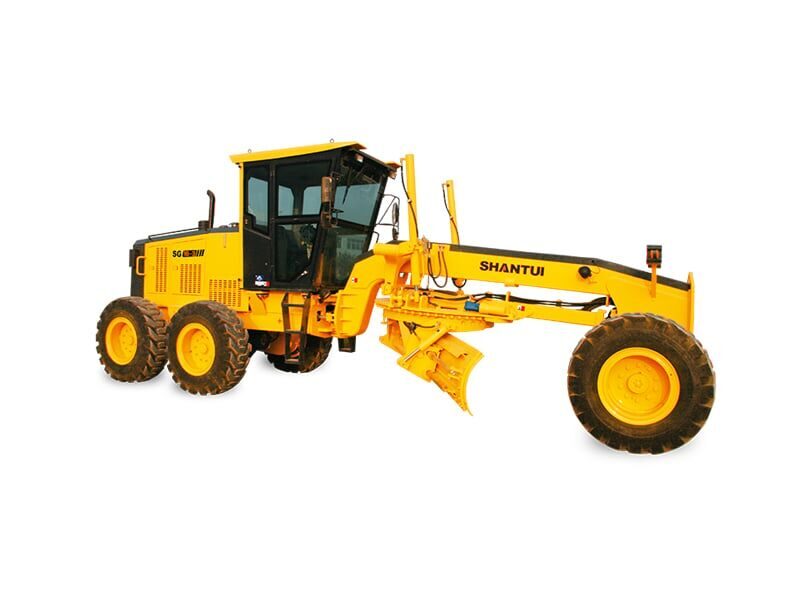

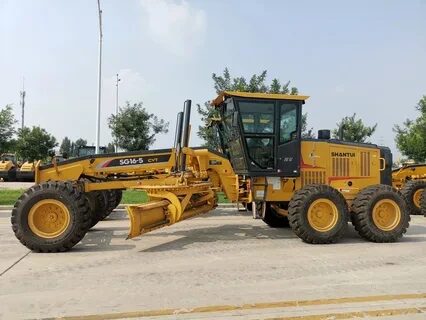

Grader SHANTUI 165
The Shantui 165 is a mid-class motor grader designed for a variety of road and earthwork tasks, including layering, surface leveling, slope and ditch formation, as well as clearing operations. It is equipped with a Cummins engine, ensuring stable power and reliability.
The grader features an articulated frame design and front-wheel steering, enhancing maneuverability. The hydraulic system allows the operator to control the blade — lift, tilt, rotation, and adjustment of the cutting angle. The blade can rotate 360°.
The cabin is designed for comfortable operation, providing excellent visibility, ergonomic controls, and sound and vibration insulation. It is suitable for both large road construction projects and municipal maintenance work.
Technical specifications
Model
165
Engine
Cummins 6BTAA5.9-C160
Power:
118 kW at 2200 rpm
Operating weight
~15 100–15 400 kg
Wheelbase
6260 mm
Minimum ground clearance
430 mm
Maximum tractive effort
~86 kN
Maximum gradeability
20°
Blade size (width)
3660 / 3965 mm
Blade height
635 mm
Blade tilt angle
360°
Blade cutting angle:
approximately 37°–83°
Maximum cutting depth
~500 mm
Length / Width / Height
8726 × 2600 × 3400 mm
Maximum forward speed
~39.6 km/h
Hydraulic pressure:
~16 MPa
Transmission: Electro-hydraulic “power shift”
6 forward gears / 3 reverse gears
